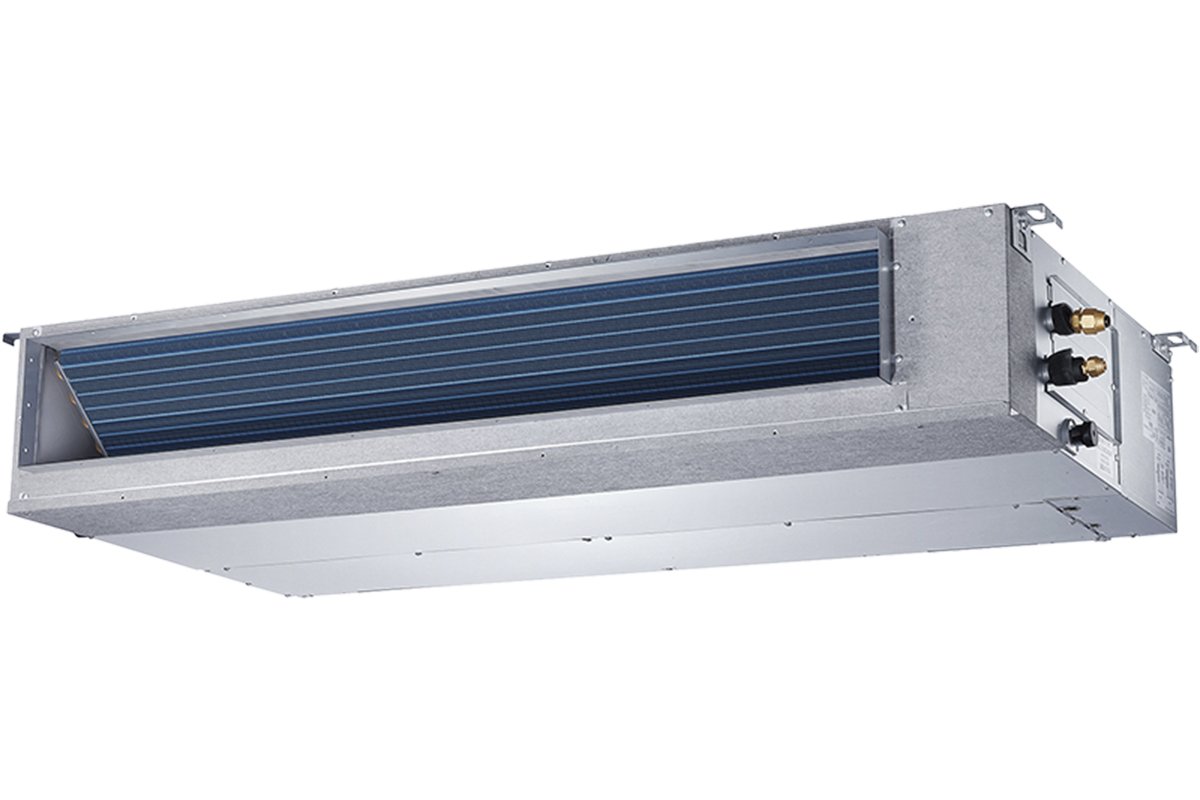

Carrier Slimline 9.7kW Ducted Reverse Cycle 42SHDS0100
Carrier Slimline 9.7kW Ducted Reverse Cycle 42SHDS0100
Carrier Slimline 9.7kW Ducted Reverse Cycle 42SHDS0100

Carrier Slimline 9.7kW Ducted Reverse Cycle 42SHDS0100

$2,603

- +
With a compact design to allow for a perfectly concealed installation. Easy to use and maintain, these units provide both a quiet and efficient solution to any small space.

Compact and efficient.

High Static Ducted systems are ideal for residential applications where ducts will be run into numerous outlets. With concealed and flexible installation it is s great choice with many features to keep you comfortable

Type Reverse Cycle (Heating & Cooling)

Capacities 9.0kW, 10.5kW, 12.8kW, 14.3kW, 16.5kW

Refrigerant R410A

Power Supply Single Phase

Features

  • Compact Design

    Perfect choice for applications with minimal ceiling space.

  • DC Inverter

     Designed to use electricity efficiently and effectively.

Specifications & Manuals

Technical Specifications

INDOOR UNIT

42SHDS100

OUTDOOR UNIT

38SHDS100

Refrigerant Type

R410A

Power Supply (Volts-Phase-Hz)

220-240V-/1/50Hz




COOLING

Capacity - rated

kW

9.70

Capacity - range (min ~ max)

kW

2.95-12.00

Efficiency (rated)

EER

3.34

Power input (rated)

kW

2.90

Operating current (rated)

A

13.05




 HEATING

Capacity - rated

kW

11.00

Capacity - range (min ~ max)

kW

2.65-13.20

Efficiency (rated)

COP

3.75

Power input (rated)

kW

2.93

Operating current (rated)

A

13.19




 INDOOR UNIT

Dimensions (HxWxD)

mm

249x1360x774

Net weight

kg

40

Airflow volume (H/M/L)

L/s

510/426/314

Moisture removal (cooling)

L/hr

1.05

Fan motor output

W

300

Sound pressure (H/M/L) at 1m distance

dBA

46/43/38

Cooling usable temperature range

°C

17-32

Heating usable temperature range

°C

0-30




OUTDOOR UNIT

Dimension (W×D×H)

mm

810x946x410

Net weight

kg

69

Compressor type

-

twin rotary

Fan motor output

W

120

Outdoor noise level (sound pressure)

dB(A)

69

Cooling usable temperature

°C

-10-46

Heating usable temperature

°C

-15-24




PIPE SIZE

Liquid line Ø

(mm)

9.52

Gas line Ø

(mm)

15.9

Coupler Style

-

flare

Drain (inside diameter) Ø

mm

20

Maximum length

m

40

Chargeless length

m

15

Maximum height difference

m

20
