Carrier Aura 9kW Wall Split System 42QHB090N8
Carrier Aura 9kW Wall Split System 42QHB090N8
Carrier Aura 9kW Wall Split System 42QHB090N8
Carrier Aura 9kW Wall Split System 42QHB090N8
Carrier Aura 9kW Wall Split System 42QHB090N8

Carrier Aura 9kW Wall Split System 42QHB090N8

$1,880

- +

Modern design and energy efficient design features make the Aura series a great cost effective choice for your air conditioning needs.

Energy efficiant design.

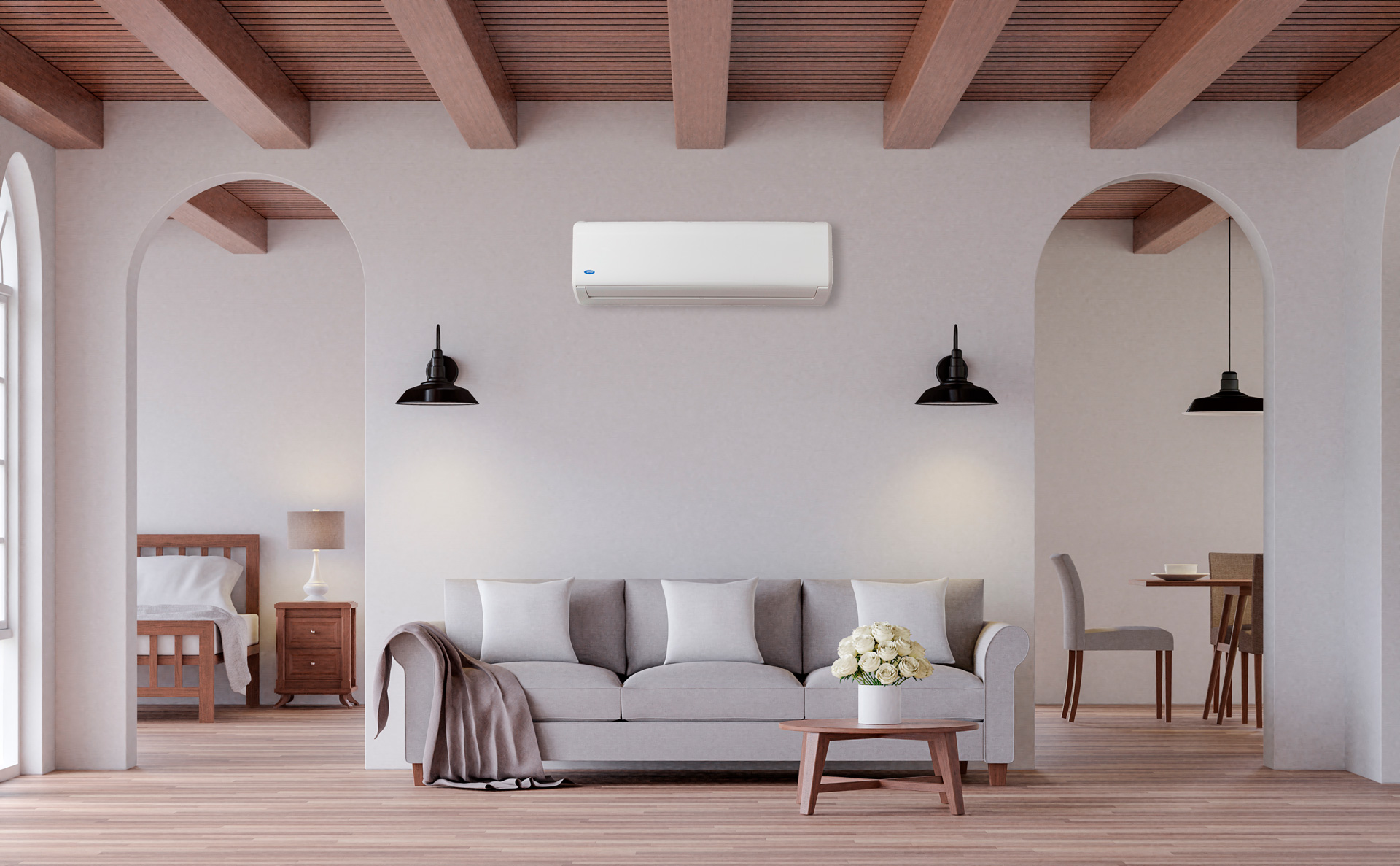

An energy efficient heating and cooling solution, the Carrier Aura Hi-Wall Split system is a cost effective choice to create great temperature control for your home as well as modern design to suit any space.

Available in Reverse Cycle (Heating & Cooling)

Capacities 2.5kW, 3.5kW, 5.0kW, 7.0kW, 9.0kW

Refrigerant R32

Power Supply Single Phase

Features

  • Turbo Mode

    Rapid heat and cool function which increses power temporarily to achieve desired temperature quickly before returning to normal power.

  • R32 Refrigerant

    Enables increased energy efficiency and a significant reduction in 'Global Warming Potential Factor' - great for the environmentally conscious.

  • Self Cleaning

    Self-cleaning removes moisture which can cause mould to form on the indoor unit.

  • Follow Me

    Follow me: the sensor built into the remote controller is active and the air conditioner will regulate the room temperature based on the temperature around the remote controller.

Specifications & Manuals

Technical Specifications

INDOOR UNIT

42QHB090N8

OUTDOOR UNIT

38QHB090N8

Refrigerant Type

R32

Power Supply (Volts-Phase-Hz)

220-240V -/1/50Hz
COOLING Capacity - rated (range)kW
9.0 (3.3-9.6)

Power Input - rated

kW
2.56

Operating current

A
12.0

Current (min~max)

A
4.0~16.0


Efficiency - rated

EER

3.52

 HEATING

Capacity - rated (range)

kW

9.7 (3.6-12)


Power Input - rated

kW

2.70



Operating current

A

12.6


Moisture removal

L/hr

3.3


Efficiency - rated

COP
3.59

 INDOOR UNIT

Dimension (W×D×H)

mm

1259 x 282 x 362


Net weight

kg

19.5


Cooling airflow (turbo/ Hi/Mi/Lo)

L/s

397.2/375/ 302.7/266.7



Sound cooling pressure (turbo/Hi/Mi/Lo)

dB(A)

55/51/45/41

OUTDOOR UNIT

Dimension (W×D×H)

mm

946 x 410 x 810



Net weight

kg

64.5


Compressor type

-

Rotary


Fan motor output

W

120


Outdoor noise level (sound pressure)

dB(A)

64


Cooling usable temperature

°C

-15~50



Heating usable temperature

°C

-15~30

PIPE SIZE

Liquid line Ø/Gas line Ø

mm (inch)

9.52/15.9 (3/8" / 5/8")


Max.refrigerant pipe length

m

50


Max.height difference in level

m

25


Chargeless length

m

5

Delivery & Returns

Delivery

We deliver air conditioning units Australia-wide. All of our units are delivered through Toll Ipec. Estimated delivery time for all orders is 1-7 working days, excluding weekends and public holidays. If you would like to track the progress of your order, contact our friendly staff on (08) 8251 9433.



We make every effort to deliver your products in the estimated delivery time, however due to factors out of our control it is possible that delivery can be delayed, and we do not accept liability for loss or damage suffered as a result.



Pick Up Option

During checkout you can select a pickup option which allows you to pick up your air conditioning unit from our warehouse in Holden Hill (South Australia) free of charge. Once your order is processed, one of our friendly staff members will contact you and confirm unit availability and a suitable pickup date/time. Generally, units become available for pick up 24 hours after order.


Estimated Delivery Times

We will deliver your products to the physical address specified on your order; we do not deliver to PO Boxes. For larger or multiple units, Toll may deliver your goods on a pallet. Disposal of this pallet is your responsibility. Delivery must be made to an attended physical address and the goods must be signed for. During the checkout process, you can nominate to provide an Authority To Leave, which allows our couriers to leave your goods at your nominated address without a signature when the site is unattended.



Without this authority and in the event that the delivery address is unattended, the goods will be returned to the closest dispatch centre and you will be charged a redelivery fee. This also applies to any goods that were refused to be accepted at the delivery address.

Where a Customer gives written authority for Products to be delivered without a signature, any and all included insurance cover will be voided.



Return Policy

We do not offer refunds for change of mind and/or incorrect choice of product. If you do change your mind about a product or if you have made an incorrect choice, we will exchange your original product with a replacement product provided the original packaging is unopened and still in place.

If your new product is less than the originally purchased unit, you will receive a credit note for the difference which is valid for 12 months. You are liable for the difference if your new unit costs more than the originally purchased unit. Please note you will be liable for all delivery costs involved in the return process if you change your mind and we are unable to accept return of any products that you have used or attempted to install.

Please note that there are guarantees and protections that cannot be excluded under the Australian Consumer Law.
