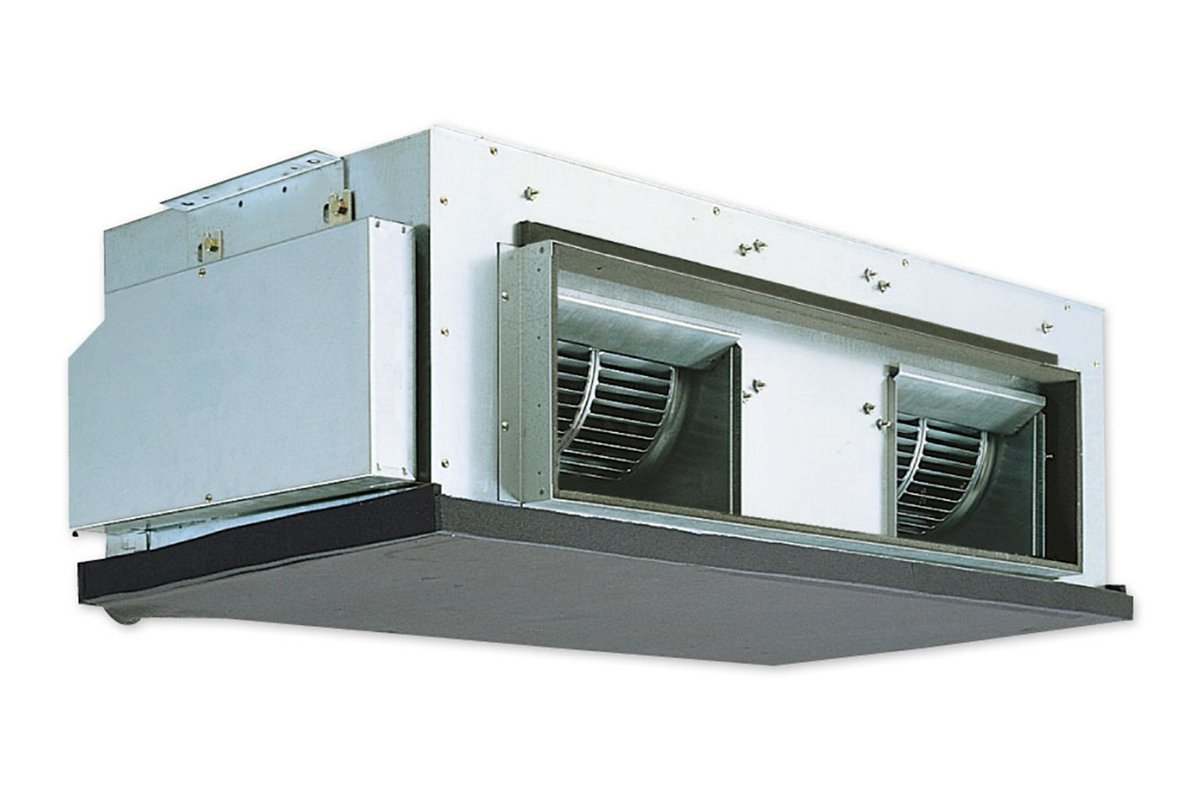

Mitsubishi Electric Ceiling Concealed 12.5kW Ducted Reverse Cycle PEAM125HAAYKIT
Mitsubishi Electric Ceiling Concealed 12.5kW Ducted Reverse Cycle PEAM125HAAYKIT

Mitsubishi Electric Ceiling Concealed 12.5kW Ducted Reverse Cycle PEAM125HAAYKIT

$4,621

- +
For elegance and style, the PEA Series compliments the room with aesthetically pleasing ceiling installation and a vast line-up of performance functions.

Elegance and style.

With Mitsubishi Electric Ducted Inverter Systems, climate control is at the touch of a button. Mitsubishi ducted units are ideal for multiple room applications and can incorporate zone control for complete control. Cool or warm air is ducted quietly throughout the home through diffusers positioned in the ceiling, wall or floor.

Type Reverse Cycle

Capacities 10.0kW, 12.5kW, 13.5kW

Refrigerant R32

Power Supply Three Phase

Features

  • Flexible Duct Design

    A flexible duct design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.

  • Quiet Operation

    Noise affects comfort, with improvements to fan blades combined with grille shape to the outdoor unit, it’s even quieter when in low noise mode.

  • Uninterrupted Design

    Mitsubishi Electric ducted systems allow for a range of diffuser designs to best suit your home decor. Talk to your installer about what is right for you.

Specifications & Manuals

Technical Specifications

Indoor Unit

PEA-M125HAA
Outdoor Unit

PUZ-ZM125YKA-A

Controller

PAR-40MAA
Refrigerant

R32
Power supply (V, phase, Hz)Outdoor
V:230V, Single-phase, 50Hz Y:400V, Three-phase, 50Hz
CoolingCapacity (Min-Rated-Max)kW
5.5-12.5-14.0

Total input (Rated)kW
3.5


AEER/EER
3.42/3.57

AEER (Part-load %) *1
-

Running current (Rated)A
5.90

Sound Pressure LevelIn (Lo-Mid2-Mid1- Hi) (SPL) *3
35-38-42-45
Out (PWL)
50(70)

Air Volume In (Lo-Mid2-Mid1-Hi)L/S *3
700-800-900-1000
HeatingCapacity (Min-Rated-Max)kW
5.0-14.0-16.0

Total input (Rated)kW
3.4


ACOP/COP
3.94/4.11

ACOP (Part-load %) *1
-

Running current (Rated)A
5.60

Sound Pressure LevelIn (Lo-Mid2-Mid1- Hi) (SPL) *3
35-38-42-45
Out (PWL)

52(70)

Air Volume In (Lo-Mid2-Mid1-Hi)L/S *3
700-800-900-1000
Max. Running Current

A
15.20
Indoor UnitInput (Cool Heat) (Rated)kW *3
0.477/0.477

Dimensions (HxWxD)mm
380x1405x900


Weightkg
66


Static PressurePa
50/100/150
Outdoor unitDimensions (HxWxD)mm
1338x1050x330(+40)


Weightkg
114


Breaker sizeA
16
PipingDiameter (Gas/Liquid)mm
15.88 / 9.52

Max. Length/Heightm
75 / 30
Guaranteed Operating Range (outdoor)Cooling (°C) *2
-5(-15)−52
Heating (°C)
-20−21
Supply Air Duct

mm
1325x266
Return Air Duct

mm
2x(510x285)

Warranty

5-Year Warranty
The Daikin '5-Year Parts and Labour' warranty applies to all Daikin split, multi-split and ducted air conditioners professionally installed in domestic premises in Australia, so when you choose Daikin, you do so with the confidence of knowing you have many years of worry-free comfort ahead.

Along with our domestic unit warranty, Daikin also provides warranties for our commercial units and air purifier product range. Regardless of your needs, we are committed to ensuring you are comfortable and confident in your Daikin choice and know that in the long-term we will be there to provide professional assistance across our entire product range.
