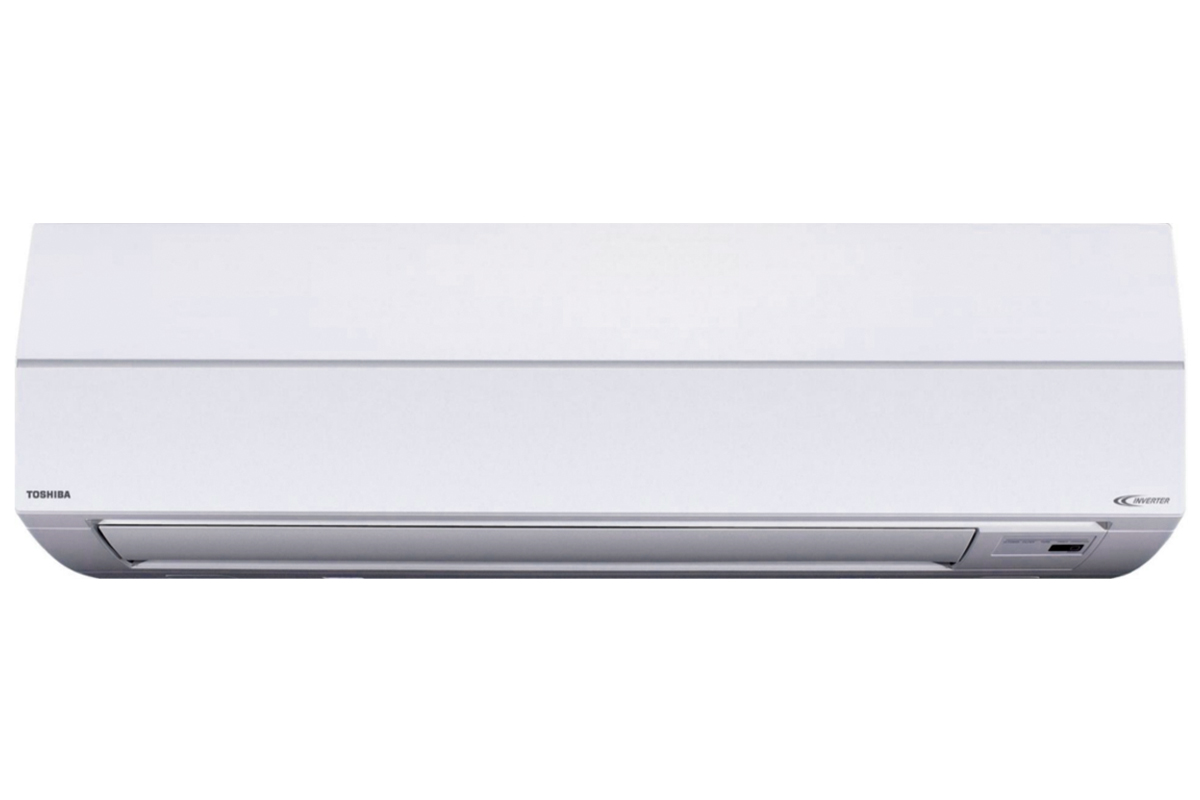

Toshiba Super Digital Inverter 6.6kW Hi-Wall Split System RAV-SM806KRT-A White
Toshiba Super Digital Inverter 6.6kW Hi-Wall Split System RAV-SM806KRT-A White

Toshiba Super Digital Inverter 6.6kW Hi-Wall Split System RAV-SM806KRT-A White

$2,090

- +

With its slim-line design the Super Digital Inverter high-wall unit is ideal for offices, restaurants and other applications where elegance is required.

Setting new standards.

The new Super Digital Inverter sets new standards for industry energy performance. The units are equipped with the new Eco-driving twin-rotary compressors, where the magnetic action minimizes the rotor friction loss.

Available in Reverse Cycle (Heating & Cooling)

Capacities 5.0kW, 6.6kW

Refrigerant R410A

Power Supply Single Phase

Features

  • Enhanced Filtration

    Zeolite Plus + Sasa filter to deodorise, Bio-Enzyme filter + Gingko filter to purify and a new antioxidant Vitamin C filter.

  • Auto-louvre

    Air outlet grilles move automatically to fill every corner of the room with warm or cool air.

  • Hot Start

    When using the heater for preheating or defrosting, stops the indoor fan to prevent cold air from being blown into the room.

  • Inverter

    Allows step-less regulation of the air conditioner's power, which reduces energy consumption and improves comfort.

Specifications & Manuals

Technical Specifications

INDOOR UNIT

RAV-SM806KRT-A

OUTDOOR UNIT

RAV-SP804ATP-A1

REFRIGERANT TYPE

R410A

POWER SUPPLY/PH/FREQ

220-240V/1/50Hz
COOLING Capacity - rated

kW
6.6

Capacity - Range (min ~ max)kW
1.9-8.0

Efficiency (rated)

EER
3.46

Star Rating

1.5

Power Input (min ~ rated ~ max)kW
0.30~1.91~2.88

 HEATING

Operating Current (rated)

A

9.04


Capacity - Rated

kW

8.0



Capacity - Range (min ~ max)

kW

1.3-10.6


Efficiency (rated)

COP

3.42


Star Rating

1.5

Power Input (min ~ rated ~ maxkW
0.27~2.34~3.87

Operating Current (rated)A
9.04

INDOOR UNIT

Dimension (HxWxD)

mm

320x1050x228


Net Weight

kg

12


Airflow Volume (H/L)

L/s

283/183



Fan Motor Output

W

30


Heating Operating Noise (sound pressure) (H/M/L/) at 1m distance

dBA

47/41/36


Heating Operating Noise (sound power) (H/M/L)

dBA

62/56/51


Cooling Usable Temperature Range

ºC
21-32

Heating Usable Temperature RangeºC
15-24

OUTDOOR UNIT

Dimension (HxWxD)

mm

890x900x320



Net weight

kg

66


Compressor Type

DC Twin Rotary


Fan Motor Output

W

63


Cooling Operating Noise (Sound Pressure) (H) at 1m distance

dBA (@spl)

48



Cooling Operating Noise (Sound Power) (H)

dBA (@swl)

64


Heating Operating Noise (Sound Pressure) (H) at 1m distancedBA (@spl)
49

Heating Operating Noise (Sound Power) (H)dBA (@swl)
65

Cooling Usable Temperature RangeºC
-15~43

Heating Usable Temperature RangeºC
-20~15

PIPE SIZE

Liquid Line Ø

mm

9.5


Gas Line Ø

mm

15.9


Coupler Style

Flare


Drain (Inside Diameter) Ø

mm

VP16


Maximum Length

m

50


Chargeless Length

m
30

Maximum Height Difference
30
